Tower Crane QTZ125 6018 2*3M L68 Potain Mast Sections Save Container Cost
Features
- QTZ125(6018) fixed tower crane in Madagascar
- Fixed / stationary tower crane
- Max. load: 10ton
- Tip load: 1.8ton
- Jib length: 69m
- CE, ISO, GOST, CU-TR certificates
Specification
| Model | QTZ125(6018) |
| Working Radius (m) | 60 |
| Max. Load Capactiy (T) | 10 |
| Tip Load (T) | 1.8 |
| Free Height Under Hook (m) | 50 |
| Max. Height with anchorages (m) | 180 |
| Mast Section dimension (m) | 1.835×1.835×2.5 or 2*2*3 |
| Hoisting Mechanism | Speed (m/min) | 0-100 0-50 |
| Motor power (kw) | 45kw |
| Slewing Mechanism | Speed (r/min) | 0-0.6 |
| Motor power (kw) | 5.5×2 |
| Trolleying Mechanism | Speed (m/min) | 0-60 |
| Motor power (kw) | 5.5 |
| Jacking-up System | Speed (m/min) | 0.4 |
| Motor power (kw) | 5.5 |
| Total Power (kw) | 61.5 (not includes jacking-up system) |
| Power Supply | 380V/50Hz |
| Base type | Well shaped base/cross base/ base with ballast |
| No. of containers | 7 x 40’HQs |
| Optional parts
(if you need them, please let me know in advance) | 1) Anemometer
2) Air condition in cabin
3) Block box
4) Remote control |
Main Features
This tower crane with tower head which connects with jib and counter-jib by tie bars, gives tower crane stronger structure and stable working condition. Besides, It’s the most popular type at home and abroad with cheap cost.
Four Mechanisms ( Hoisting mechanism, Slewing mechanism, trolleying mechanism and hydraulic climbing mechanism) work together to control the tower crane operation.
Equipped with full safety device to avoid over-weight loading, over-speed and over-torque, so that it is with good speed-control capacity, satisfactory operating stability and high work efficiency.
They can be widely used for construction of high-rise buildings, bridge and tower-like buildings.
Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices

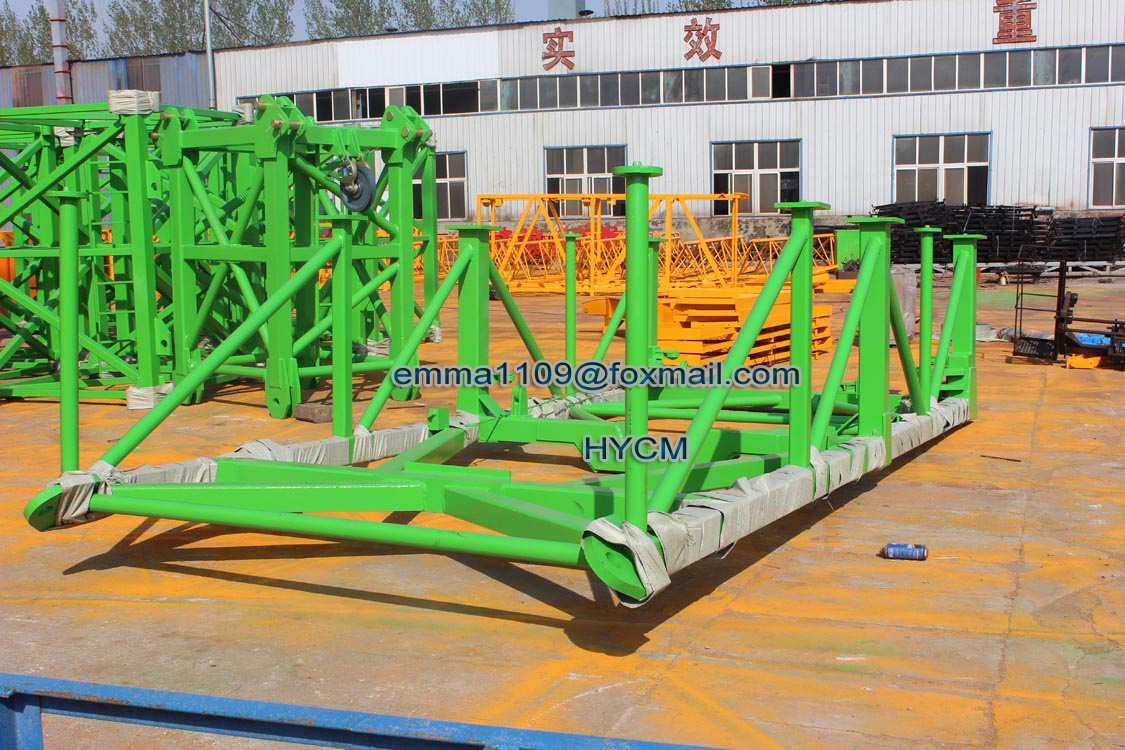

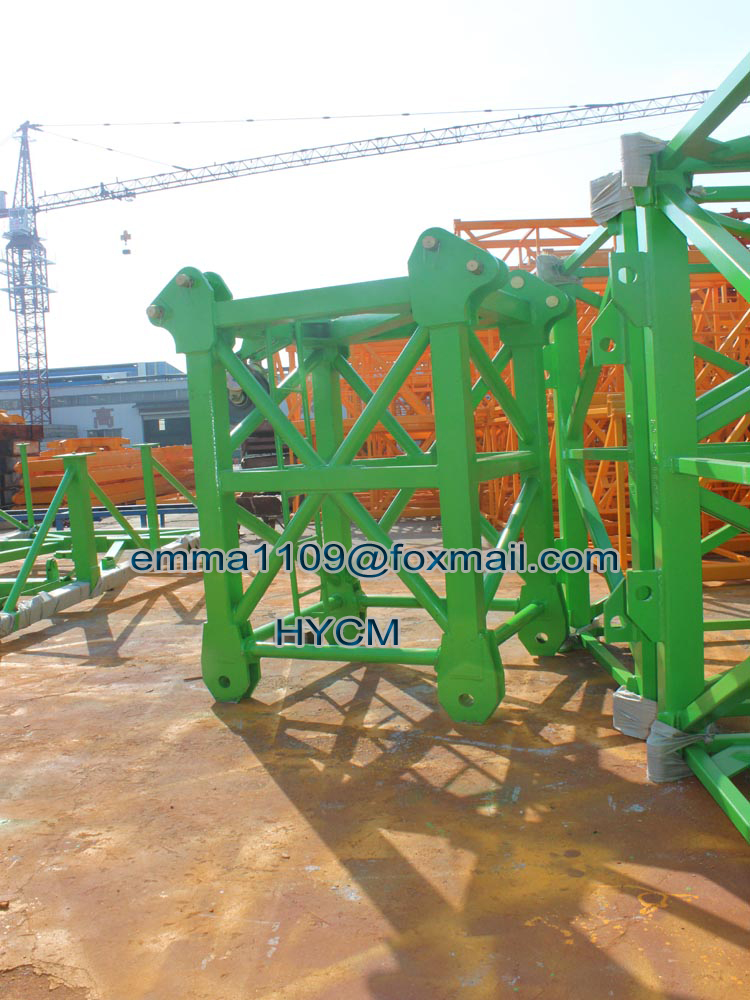

Pictures
